DATUM
Revit families · one by one

Families that move.

Windows, doors, furniture, a stair, parking and sheets — parametric Revit families on the DATUM standard. Take a full package or only the part you need.

01 · Windows

Prices to be announced
Windows for walls
Curtain walls
Special windows
01 · Full package

Windows

43 window families: 19 for walls, 19 for curtain walls and 5 special.

  • 19 for walls — plain, with a top light or with a bottom light
  • 19 for a curtain wall panel — the same types
  • 5 special — round and triangular
  • The opening type of every sash in Properties: fixed, turn, tilt and turn, left or right
  • Opening lines in elevation, the handle in 3D
  • Railing, frames, sill and reveals — each switched on or off
To Be Announced
02 · Full package

Windows for walls

19 window families for walls.

  • Single, Double, Triple, Quadruple, Penta and Hexa — plain, with a top light or with a bottom light
  • Width and height by parameter — the fields and the mullions follow
  • The opening type of every sash in Properties: fixed, turn, tilt and turn, left or right
  • Opening lines in elevation, the handle in 3D
  • Railing, exterior frame, interior sill and reveals — each switched on or off
To Be Announced
03 · Full package

Windows for curtain walls

19 window families for a curtain wall panel.

  • Single, Double, Triple, Quadruple, Penta and Hexa — plain, with a top light or with a bottom light
  • The size comes from the curtain wall panel
  • The same sashes, opening types and opening lines as the windows for walls
  • Railing switched on or off
To Be Announced
04

Plain windows

6 window families for walls: Single, Double, Triple, Quadruple, Penta and Hexa.

  • Width and height by parameter — the fields and the mullions follow
  • The opening type of every sash in Properties: fixed, turn, tilt and turn, left or right
  • Railing, exterior frame, interior sill and reveals — each switched on or off
To Be Announced
05

Windows with a top light

6 window families for walls, each with a top light.

  • Width and height by parameter — the fields and the mullions follow
  • The opening type of every sash in Properties: fixed, turn, tilt and turn, left or right
  • Railing, exterior frame, interior sill and reveals — each switched on or off
To Be Announced
06

Windows with a bottom light

7 window families for walls, each with a bottom light.

  • Width and height by parameter — the fields and the mullions follow
  • The opening type of every sash in Properties: fixed, turn, tilt and turn, left or right
  • Railing, exterior frame, interior sill and reveals — each switched on or off
To Be Announced
Special windows
07

Special windows

5 round and triangular window families for walls.

  • Round, round with a horizontal or a vertical mullion
  • Triangle, triangle with a horizontal mullion
  • One size — the frame and the mullions follow
  • Fixed or opening sashes, with opening lines and the handle
  • Railing, exterior and interior frame on every window
To Be Announced

02 · Doors

Full package or one by one
08 · Full package

Doors

Every DATUM door in one package.

  • Exterior — aluminium, single and double, glazed and with a top light; the entrance door; the garage door
  • Interior — single and double, glazed and with a top light; flush doors
  • Built-in — pocket doors, single and double
  • Barn doors — sliding, single and double
  • Balcony — 16 doors with a window, 8 of them with a top light
  • Curtain wall doors — single and double
To Be Announced
09

Balcony doors

16 balcony doors with a window — single and double, 8 of them with a top light.

To Be Announced
10

Interior doors

Single and double, glazed and with a top light, and flush doors.

To Be Announced
11

Exterior doors

Aluminium, single and double, glazed and with a top light, the entrance door and the garage door.

To Be Announced

03 · Furniture, parking, stair, sheets

One by one
Parking, 90°
Parking, parallel
Parking, accessible
12

Parking families

A shared parameter counts the parking spaces in the project.

To Be Announced
13

Tables with chairs

A round and a rectangular table with chairs.

  • Round — diameter and number of chairs
  • Rectangular — drag the width, the chairs follow
To Be Announced
14

Sofas

A sofa with a daybed and a modular sofa.

  • Sofa with daybed — width and daybed length
  • Modular sofa — seats added along the width
To Be Announced
15

Flow Stair

A railing on global parameters (top) and a family (bottom): riser, tread, steps.

To Be Announced

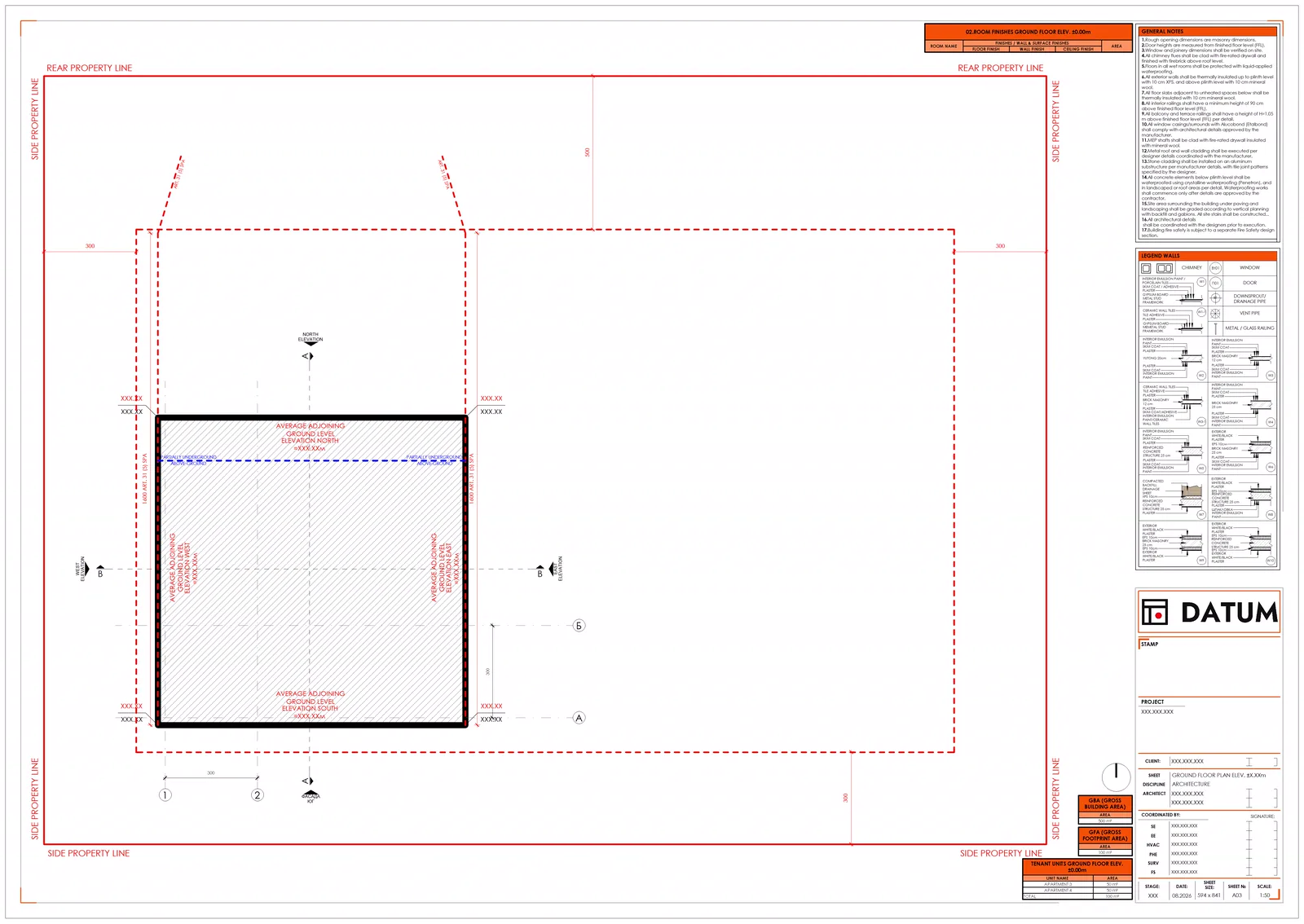

A working sheet on the DATUM title block
16

Sheets

Title blocks for presentation and for working sheets.

  • Presentation and working title blocks
  • Fixed and instance sizes
To Be Announced
17

Families per request

The family you need, built for you on the DATUM standard. Write us what it is and send a drawing or a photo.

To Be Announced
